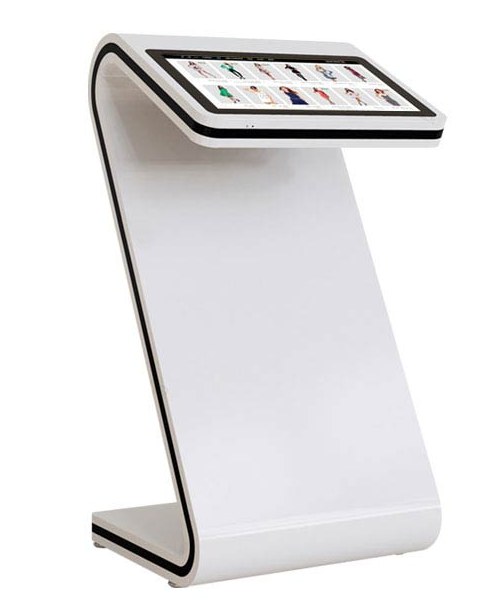

Ecoline Angled-S Kiosk
A compact 21.5" all-in-one touch kiosk on a curved S-shaped stand.
The Angled-S brings self-service to smaller spaces. Its 21.5" Full HD screen, at 1920 x 1080, shows lifelike images, and the capacitive touch responds like a phone.
High-strength tempered glass protects the screen against scratches, and the metal body and base keep it steady in busy lobbies, stores and showrooms.
Part of the Ecoline Kiosks
Compact and Tough
Full HD 1080p
A 21.5" display that presents images clearly and true to life.
Scratch-resistant glass
High-strength tempered glass that stands up to daily use.
Capacitive touch
Fast, phone-like response for menus, catalogues and maps.
Small Footprint, Full Features
- Curved S-shaped stand, 575 x 530 x 1085 mm, 15 kg
- Two 10 W speakers built in
- Optional motion sensor
- Optional high-brightness display: 500, 1000 or 1500 nits
- Low 25 W power consumption
Product Specifications
| Specification | 21.5" |
|---|---|
| Panel | 21.5" TFT LED (WLED), 16:9 |
| Resolution | 1920 x 1080 |
| Brightness | 300 cd/m²; 500, 1000 or 1500 nits optional |
| Contrast ratio | 3000:1 |
| Viewing angle | 89° / 89° / 89° / 89° |
| Response time | 18 ms |
| Display area | 476.64 x 268.11 mm |
| Touch | Projected capacitive (PCAP) |
| Speakers | 2 x 10 W |
| Kiosk size | 575 x 530 x 1085 mm |
| Weight | 15 kg |
| Body and base | Metal |
| Power | 100 to 240 V AC; 25 W |
| Options | Motion sensor; high-brightness display |
| In the box | Remote control, power supply, user manual, keys, tools and screws |
FAQ
Frequently Asked Questions
What size is the screen?
21.5", Full HD (1920 x 1080), with projected capacitive touch.
Can it be brighter for sunny spaces?
Yes. High-brightness displays of 500, 1000 or 1500 nits are available as options.
How big is the kiosk?
575 x 530 x 1085 mm, and it weighs 15 kg.
