Android Media Players in firmChannel’s digital signage platform refer to the use of Android-based devices to run and manage digital signage content. These media players leverage the versatile and user-friendly Android operating system to provide a cost-effective, flexible, and reliable solution for digital signage deployments.
CMP100-10 Android and Linux Player
A compact, fanless 4K player for digital signage. An 8-core processor with a 6 TOPS AI accelerator, two HDMI outputs and an HDMI input, in a compact metal enclosure. It runs Android 14, or Debian 12 Linux as an option, and ships with a VESA mount plate for fitting behind a display.
- Android 14, or Debian 12 Linux (optional)
- 8-core Rockchip RK3576 with a 6 TOPS AI accelerator
- 4 GB memory, 64 GB storage
- Two HDMI outputs (up to 3840 x 2160 at 60 Hz) and an HDMI input
- Video decoding up to 8K at 30 fps
- Gigabit Ethernet, Wi-Fi 802.11ac and Bluetooth 4.2
- Fanless metal enclosure, 160 x 107 x 36 mm (6.3 x 4.2 x 1.4 in)
- Scheduled and automatic power on
Ideal for menu boards, wayfinding, lobby screens and information displays.
Technical specifications
| Specification | Details |
|---|---|
| Processor | Rockchip RK3576, 8-core: 4x Cortex-A72 + 4x Cortex-A53; 6 W TDP |
| AI accelerator | NPU, 6 TOPS; INT4, INT8, INT16, FP16, BF16 and TF32 |
| Graphics | Mali-G52 MC3; OpenGL ES 3.2, OpenCL 2.0, Vulkan |
| Memory | 4 GB LPDDR4X, onboard |
| Storage | 64 GB eMMC, onboard |
| Operating system | Android 14 (Debian 12 optional) |
| Video decoding | Up to 8K at 30 fps: H.264, H.265, VP9, AVS2 |
| Video encoding | Up to 4K at 60 fps: H.264, H.265 |
| Display outputs | 1x HDMI 2.0 up to 3840 x 2160 at 60 Hz (HDCP 2.3); 1x HDMI 1.4 up to 2560 x 1600 at 60 Hz (HDCP 2.2) |
| Video input | 1x HDMI 2.0 in, up to 3840 x 2160 at 60 Hz (HDCP 2.3) |
| Network | 1x Gigabit Ethernet (RJ45); Wi-Fi 802.11ac, 2.4 and 5 GHz; Bluetooth 4.2; external antenna |
| USB and serial | 3x USB 3.2 Gen 1, 1x USB 2.0 OTG, 1x RS-232 |
| Audio | 1x headset jack (microphone in and audio out) |
| System | Hardware watchdog timer; auto power on; real-time clock with power-on schedule per day of the week |
| Power | 12 V DC, 2 A; lockable DC input; AC power adapter included |
| Power consumption | 8.5 W idle; 16.3 W full load |
| Enclosure | Fanless metal, black; 160 x 107 x 36 mm (6.3 x 4.2 x 1.4 in) |
| Weight | Unit 0.67 kg (1.48 lb); packaged with mount 1.3 kg (2.87 lb) |
| Temperature | Operating 0 to 45 °C (32 to 113 °F) with 0.7 m/s airflow; storage -20 to 75 °C (-4 to 167 °F) |
| Humidity | 95% at 45 °C, non-condensing |
| Mounting | VESA mount plate and screws included: 75 x 75 and 100 x 100 mm |
| Certifications | CE, FCC Class B, UKCA, RoHS |
| Warranty | 1 year, return to depot |
Connections
Front
- Power button
- Recovery button
- 3x USB 3.2 Gen 1
- USB 2.0 OTG
- RS-232 serial
Rear
- Wi-Fi antenna
- Headset jack
- 2x HDMI outputs
- HDMI input
- Gigabit Ethernet
- 12 V DC in (lockable)
In the box
- CMP100-10 media player
- VESA mount plate and screws
- Wi-Fi antenna
- AC power adapter and power cable
The VESA mount plate fits 75 x 75 and 100 x 100 mm patterns, so the player can sit out of sight behind the display.

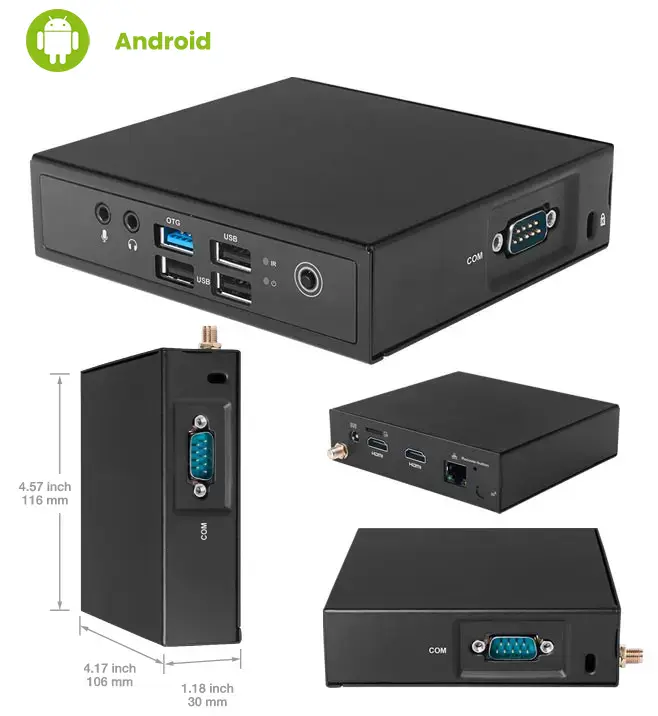

CMP100-9 Android Player
OS
- Android 11
CPU
- Rockchip RK3399 1.80GHz, 2 Cores Cortex-A72 & 4 Cores Cortex-A53
Memory
- 4GB LPDDR4-2133 MHz
Storage
- 64 GB, Onboard eMMC
Display
- 1 x HDMI (Max. 4096 x 2160 @60 Hz)
- 1 x HDMI (Max. 2560 x 1440 @30 Hz)
Connectivity
- 1 x USB3.2 Gen1 (OTG), 3 x USB2.0
- 1 x RS232
- 1 X MIC-IN, 1 x AUDIO-OUT
Network
- 10/100/1000M Ethernet
- Built in 2.4G/5G WIFI Support IEEE 802.11ac/a/b/g/n
- Bluetooth 4.1
- Optional Cellular Module
Enclosure
- Metal Enclosure
Dimensions
- 116 mm x 106 mm x 30 mm (4.57” x 4.17” x 1.18”)
Robust Android Media Players for Versatile Digital Signage Solutions
firmChannel’s digital signage platform provides robust support for Android-based media players, offering a cost-effective, flexible, and user-friendly solution for your digital signage needs. Android media players are known for their versatility, ease of use, and wide availability, making them an excellent choice for a variety of digital signage applications.
Affordable Hardware for Scalable Digital Signage Deployments
- Affordable Hardware: Android media players are typically more affordable compared to other platforms, providing a cost-effective solution for deploying a large-scale digital signage network without compromising on performance.
- Wide Availability: Android devices are widely available in various form factors, allowing you to choose the best fit for your digital signage requirements.
User-Friendly Setup for Quick Digital Signage Integration
- User-Friendly Interface: Android digital signage media players come with an intuitive and user-friendly interface, making them easy to set up and operate. This reduces the learning curve and allows for quick deployment.
- Dedicated Functionality: firmChannel’s Android media players are dedicated to acting as digital signage media players, ensuring optimized performance and reliability for your digital signage network.
Customizable Options for Tailored Signage Experiences
- Customizable Options: Android digital signage media players offer great flexibility with numerous settings and customization options. Tailor your digital signage experience to meet specific needs and preferences.
- Wide Range of Devices: firmChannel offers its own commercial purpose-built Android players but can also support other Android players if the customer chooses or there is a need to retrofit existing hardware. This ensures you can find the perfect solution for your deployment.
Seamless High-Definition Playback for Reliable Signage Networks
- Stable Operation: Android media players are designed for stable and reliable performance, ensuring your digital signage content is delivered smoothly and consistently.
FAQ
Frequently Asked Questions (FAQs)
What types of Android devices are compatible with firmChannel’s platform?
firmChannel supports a wide range of Android-based media players, including compact devices and more robust hardware. This compatibility ensures that you can choose the best media player to meet your specific digital signage needs. firmChannel also offers its own commercial purpose-built Android players for optimized performance.
How does using Android digital signage media players benefit my digital signage network?
Android players offer cost-effective solutions, ease of use, and great flexibility. They are widely available and come with an intuitive user interface that simplifies setup and operation. Their stable and reliable performance makes them ideal for various digital signage applications.
Can I customize my digital signage experience with Android media players?
Yes, Android media players offer numerous customization options. You can tailor your digital signage setup to meet specific needs and preferences, leveraging the wide range of settings available on the Android platform.
What kind of content can I display using Android media players?
Android media players can display a wide range of content types, including high-definition videos, images, animations, interactive applications, and live data feeds. Their versatile capabilities ensure smooth playback and performance for diverse digital signage scenarios.
Are there specific technical requirements for using Android digital signage media players with firmChannel’s platform?
firmChannel’s platform is designed to work with a broad range of Android digital signage media players. However, it is recommended to use devices with sufficient processing power, memory, and storage to handle the demands of your digital signage content. For optimal performance, refer to firmChannel’s technical specifications and recommendations.
Request a demo today!
Enhance your digital signage network with the versatile and cost-effective capabilities of Android media players supported by firmChannel’s platform. Request a demo today to discover how our solutions can elevate your digital signage strategy.
