Media Players
Purpose-built and designed for 24x7 continuous operation.
Our media players have been specifically designed, tested and certified to reliably function in a commercial digital signage environment.
Media Players are your signage networks “gateway to the cloud”. It’s essential that media players are purpose-built and designed for 24x7 continuous operation to ensure your network stays up and running. This is especially true when your equipment is located in remote locations or in hard to reach areas, where sending out a service technician can be costly. Our media players have been specifically designed, tested and certified to reliably function in a commercial digital signage environment.
CMP100-9 Media Player
OS
- Android 11
CPU
- Rockchip RK3399 1.80GHz, 2 Cores Cortex-A72 & 4 Cores Cortex-A53
Memory
- 4GB LPDDR4-2133 MHz
Storage
- 64 GB, Onboard eMMC
Display
- 1 x HDMI (Max. 4096 x 2160 @60 Hz)
- 1 x HDMI (Max. 2560 x 1440 @30 Hz)
Connectivity
- 1 x USB3.2 Gen1 (OTG), 3 x USB2.0
- 1 x RS232
- 1 X MIC-IN, 1 x AUDIO-OUT
Network
- 10/100/1000M Ethernet
- Built in 2.4G/5G WIFI Support IEEE 802.11ac/a/b/g/n
- Bluetooth 4.1
- Optional Cellular Module
Enclosure
- Metal Enclosure
Dimensions
- 116 mm x 106 mm x 30 mm (4.57” x 4.17” x 1.18”)
CMP200-9 Media Player
Our Windows-based media player is designed to meet our standard for 24/7 use in various environments.
- All popular video and image formats are supported by our media player.
- Our media player also supports RSS feeds and text tickers.
- Custom media created using our built-in Content Designer is also supported.
- In addition to these features, our media player offers many add-ons, such as Video Presence, Wayfinding, and Smart Lists.
Technical Specifications
- Intel® Celeron® Processor N5105
- Intel® UHD Graphics, up to 800MHz
- >8 GB Memory (Dual-Channel DDR4-2933 SODIMMS, 1.2V, 32GB maximum)
- 220 GB Storage (M.2 22×80 key M slots for PCIe x4 NVMe SSDs)
- Intel® Wireless AC9462 M.2 card, dual-band 1×1 w/ diversity + Bluetooth® v5.1, internal antenna
- Intel® 10/100 /1000 Ethernet
- 2x front USB 3.2
- 2 x rear USB 2.0, 2 x rear USB 3.2
- 1 x DisplayPort
- 1 x HDMI 2.0b
- 3.5 mm front microphone jack, 3.5 mm front stereo audio jack
- External 9-pin front panel header
- 19VDC 65W power supply
- Windows 10 IoT Enterprise LTSC
- 3-year return to depot warranty

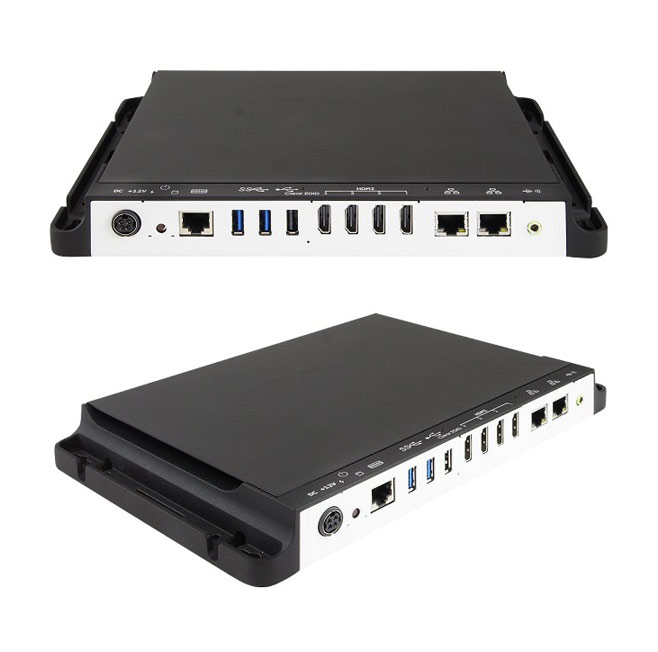

- AMD RyzenTM Embedded V1000 Series
- Vega GPU with up to 11 Compute Units
- 4x HDMI 2.0 with independent audio output support
- Built-in hardware EDID emulation function with the software setting mode
- 2x 4GB DDR4-2400 SO-DIMM, dual channel, Max. 32GB
- 1x 128GB M.2 M-Key (2280) storage
- 1x Mini PCI-E (full-size) for Wi-Fi, Bluetooth, 4G LTE or capture card options
- 1x M.2 E-Key (2230) for Wi-Fi, Bluetooth, 4G LTE options
- Segregated flow ventilation design
- Windows 10

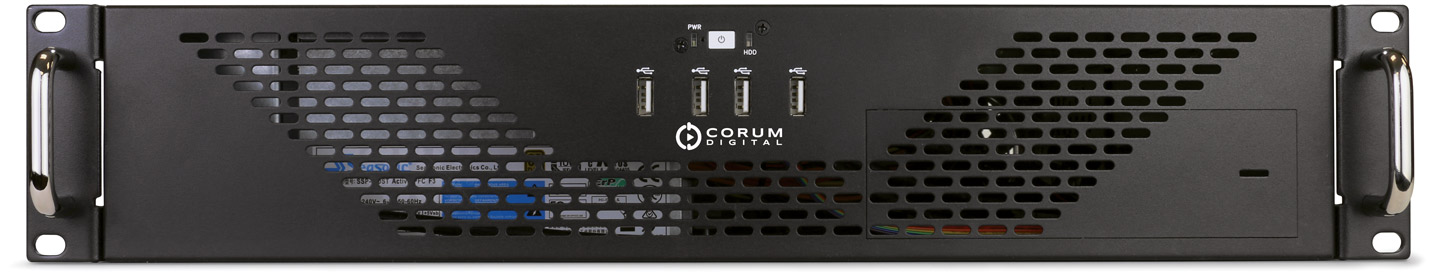

The firmCHANNEL CMP1600 purpose-built Windows 10 based Video Wall media players are designed for 24/7 use and is one of the most versatile video wall controllers on the market today.
- Playback up to 4K resolution
- Supports all popular video and image formats
- Supports RSS feeds and text tickers
- Supports media created using firmCHANNEL’s built-in Content Designer
- Supports Anonymous Analytics/Facial Recognition
- Has remote login capabilities for remote support
- Includes a 1-year RTD warranty

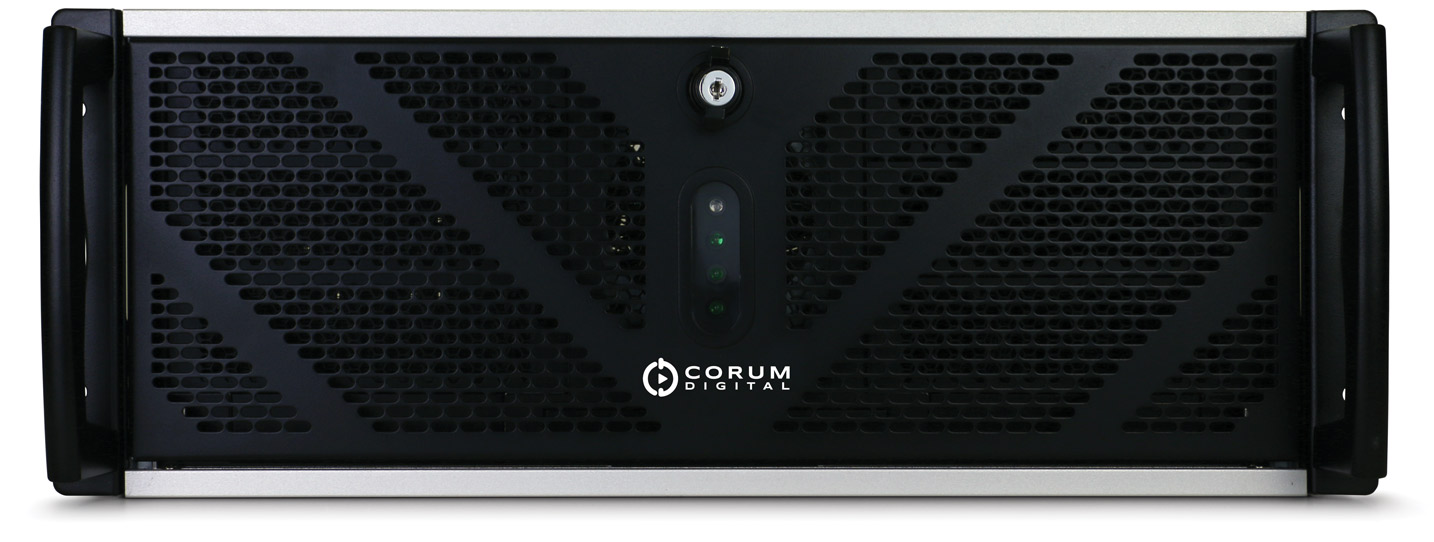

The firmCHANNEL CMP3200 purpose-built Windows 10 based Video Wall media player has the unique ability to offer best-in-class performance while maintaining the versatility to accommodate any of your video wall integration needs.
- Playback up to 4K resolution
- Supports all popular video and image formats
- Supports RSS feeds and text tickers
- Supports media created using firmCHANNEL’s built-in Content Designer
- Supports Anonymous Analytics/Facial Recognition
- Has remote login capabilities for remote support
- Includes a 1-year RTD warranty
