Ecoline Angled Kiosk
An all-in-one touch kiosk on a K-shaped stand, in five sizes from 21.5" to 65".
A self-service kiosk with the computer built in. Its angled, 10-point multi-touch screen is as easy to use as a phone, so visitors can find their way, browse, order or sign in on their own.
An Intel Core all-in-one PC runs demanding applications and HD content, and the commercial panel is made for 24/7 use in malls, stores, showrooms and busy offices.
Part of the Ecoline Kiosks
Self-Service, Built In
Intel Core inside
An all-in-one PC that creates, streams and shares HD content.
Multi-touch
A 10-point touch screen with room to work, from 21.5" to 65".
24/7 commercial panel
Made for continuous use, with a life of up to 50,000 hours.
Made for Busy Places
- A sleek K-shaped stand that is stable and draws the eye to the screen
- Metal casing in black or white
- Optional camera, 4G or NFC
- Suited to large facilities and offices with heavy foot traffic
- Used for wayfinding, advertising, point of sale, hospitality and retail displays

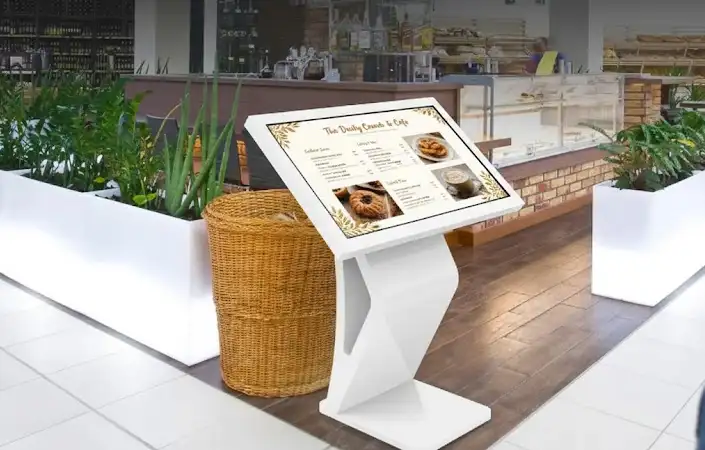

Ecoline Angled in Place
Product Specifications
| Specification | 21.5" | 32" | 43" | 55" | 65" |
|---|---|---|---|---|---|
| Panel | TFT LED, 16:9 | ||||
| Resolution | 1920 x 1080 | 3840 x 2160 | |||
| Brightness | 500 cd/m² | ||||
| Contrast ratio | 1000:1 | 1400:1 | 1200:1 | 1400:1 | 1400:1 |
| Viewing angle | 89° / 89° / 89° / 89° | ||||
| Display area | 476.1 x 267.8 mm | 698.4 x 392.9 mm | 941.2 x 529.4 mm | 1209.6 x 680.4 mm | 1428.5 x 803.5 mm |
| Touch | 10-point multi-touch | ||||
| Computer | All-in-one PC with an Intel Core processor | ||||
| Casing | Metal, black or white; K-shaped stand | ||||
| Options | Camera, 4G, NFC | ||||
| Panel life | Up to 50,000 hours; commercial panel for 24/7 use | ||||
FAQ
Frequently Asked Questions
Which sizes are available?
21.5", 32", 43", 55" and 65". The 65" model is 4K; the others are 1920 x 1080.
Does it need a separate computer?
No. It is an all-in-one kiosk with an Intel Core PC built in.
Which options are available?
A camera, 4G and NFC, and a black or white metal casing.
