Duraline Angled Kiosk
A landscape kiosk for 43" and 55" commercial displays, shaped for lobbies, showrooms and other indoor public spaces.
An hourglass steel body holds the display at a comfortable viewing angle, flush with the kiosk window. Stand it on its flat base or anchor it to the floor, run your content from firmChannel, and service it through the internal component tray.
Hex-pin screw locks keep the display and media player secure, and a premium powder-coat finish in gloss black or silver protects the steel for years.
Designed Around the Display
Hourglass enclosure
Curved lines that suit a modern interior and leave plenty of choice about where the kiosk stands.
Component tray inside
Room for the media player, power and cables, out of sight and easy to reach for servicing.
Flat base
Stands on its own, or bolts to the floor where more stability and security are needed.
Built for Everyday Public Use
- A curved display cover that pulls out from the corner for quick access
- The screen sits flush with the window for a clean front
- A six-outlet surge suppressor, UL and cUL approved, with a 6' cord, protects the electronics
- Shipped pre-assembled, for a faster installation
- Premium powder coat that protects the steel for years
- Custom colours, vinyl wraps and decal logos to carry your brand

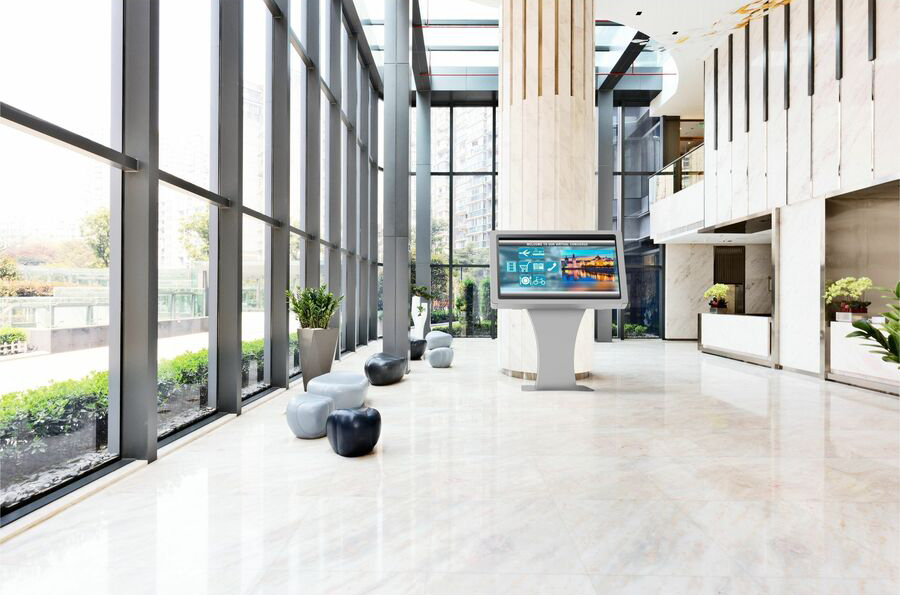

Gloss Black or Silver
Pick the finish that suits the space: gloss black for a bold look, silver for a bright, open one.
One Kiosk, Many Jobs

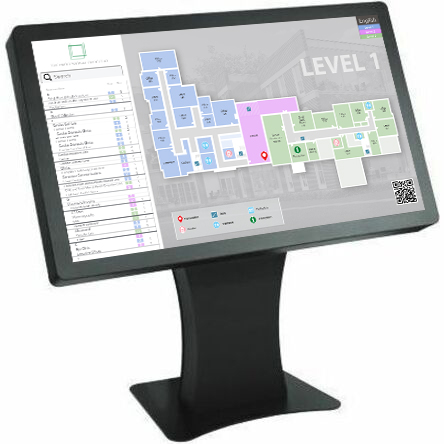

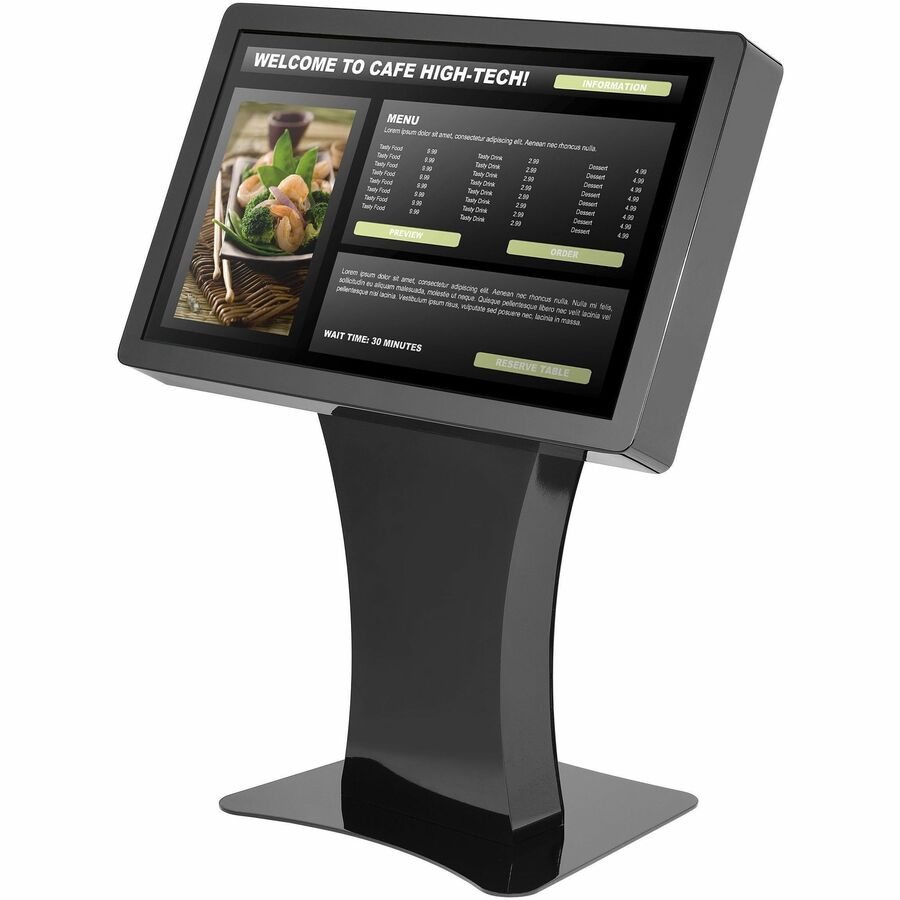

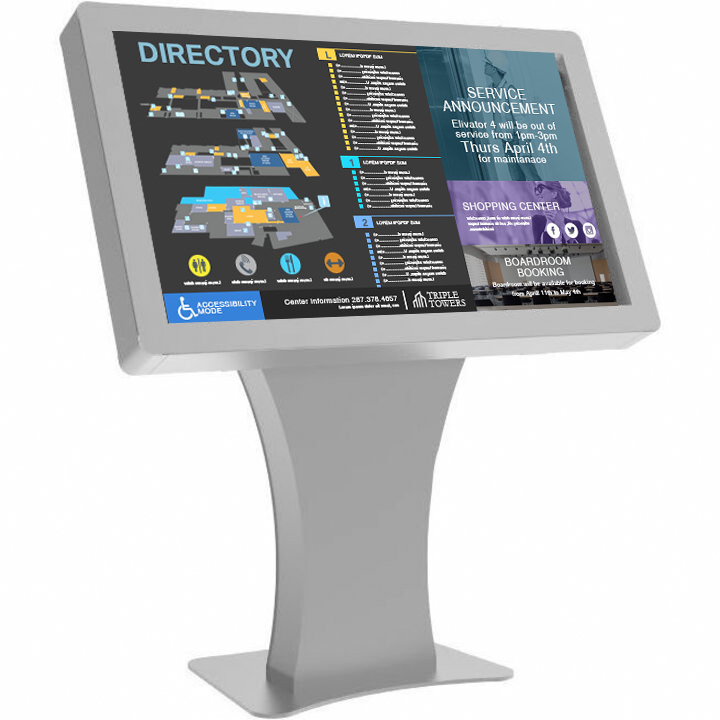

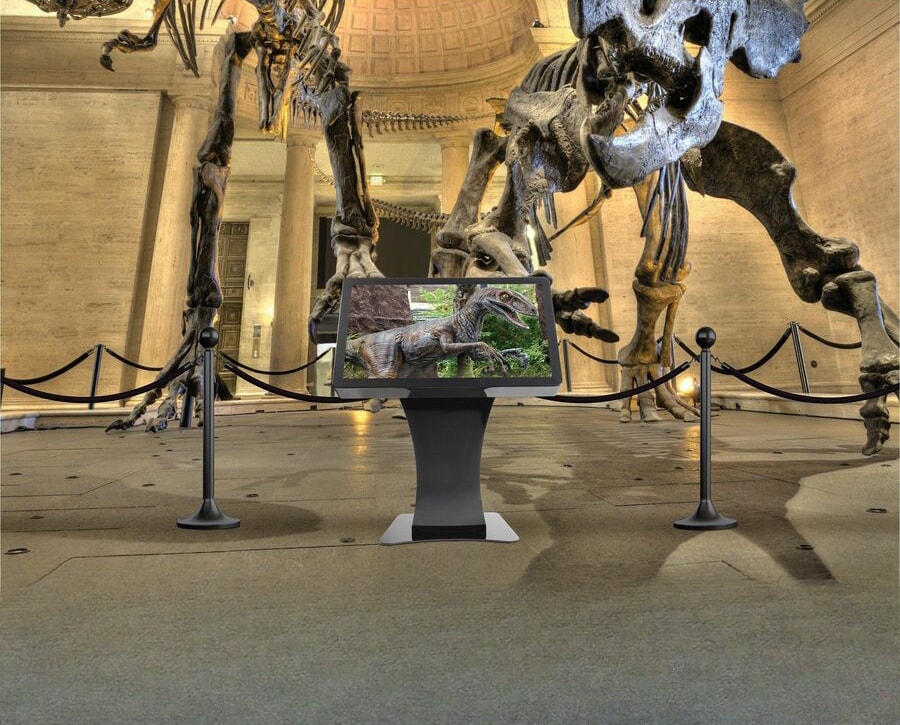

Run interactive wayfinding in a lobby, a building directory in an office tower, menus and promotions in a restaurant, or exhibit information in a museum. With firmChannel, you schedule the content, update every kiosk from one dashboard and see each one's status in real time.
Need a kiosk designed for accessibility? See the Duraline Angled Accessibility Kiosk.
Product Specifications
Takes most 43" and 55" displays up to 3.50" (89 mm) deep: up to 40.4" x 23.9" (1028 x 607 mm) for the 43" and 51.0" x 29.5" (1295 x 749 mm) for the 55". Cover glass is not included with the enclosure.
| Specification | 43" | 55" |
|---|---|---|
| Display size | 43" | 55" |
| Largest display (W x H) | 40.4" x 23.9" (1028 x 607 mm) | 51.0" x 29.5" (1295 x 749 mm) |
| Deepest display | 3.50" (89 mm) | |
| Orientation | Landscape | |
| VESA mount | 700 x 400 | |
| Kiosk (W x H x D) | 41.86" x 53.60" x 18.50" (1063 x 1362 x 470 mm) | 52.45" x 56.15" x 18.50" (1332 x 1426 x 470 mm) |
| Kiosk weight | 124 lb (56 kg) | 137 lb (62 kg) |
| Load capacity | 75 lb (34 kg) | |
| Material | Steel | |
| Finish | Powder coat, gloss black or silver | |
| Base | Flat; free-standing or bolted to the floor | |
| Security | Hex-pin screw locks | |
| Power | Six-outlet surge suppressor, UL and cUL approved, 6' cord | |
| Certifications | UL, cUL, RoHS; TAA compliant | |
| Warranty | 5 years on the metal components | |
| Package (W x H x D) | 48.00" x 60.00" x 40.00" (1219 x 1524 x 1016 mm) | |
| Shipping weight | 186 lb (84 kg) | 205 lb (93 kg) |
| In the box | Kiosk enclosure, display mounting hardware, installation instructions | |
| Accessories | HDMI and component video cables, non-glare polycarbonate, decal logos | |

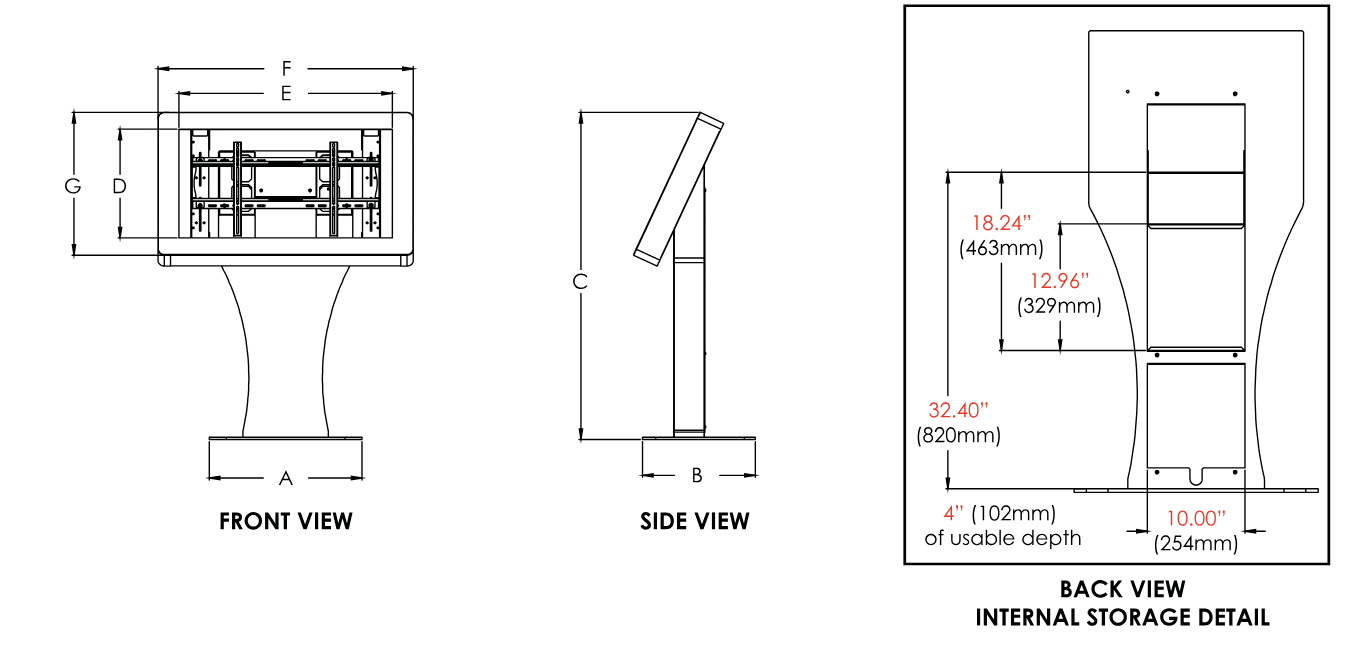

Dimensions
| Dimension | 43" | 55" |
|---|---|---|
| A | 25.00" (635 mm) | 25.00" (635 mm) |
| B | 18.50" (470 mm) | 18.50" (470 mm) |
| C | 53.60" (1362 mm) | 56.15" (1426 mm) |
| D | 21.21" (538 mm) | 26.91" (684 mm) |
| E | 37.58" (954 mm) | 48.05" (1220 mm) |
| F | 41.86" (1063 mm) | 52.45" (1332 mm) |
| G | 25.83" (656 mm) | 31.44" (799 mm) |
FAQ
Questions About the Duraline Angled Kiosk
Which displays fit the Duraline Angled Kiosk?
Most 43" and 55" commercial displays in landscape, up to 3.50" (89 mm) deep, mounted on a 700 x 400 VESA pattern.
Can it be fixed to the floor?
Yes. It stands on its own flat base, or bolts to the floor for more stability and security.
Where does the media player go?
On the internal component tray, with the power and data cables, with direct access for servicing.
Which finishes are available?
Gloss black or silver powder coat. Custom colours, vinyl wraps and decal logos are also available.
What is the warranty?
5 years on the metal components.
