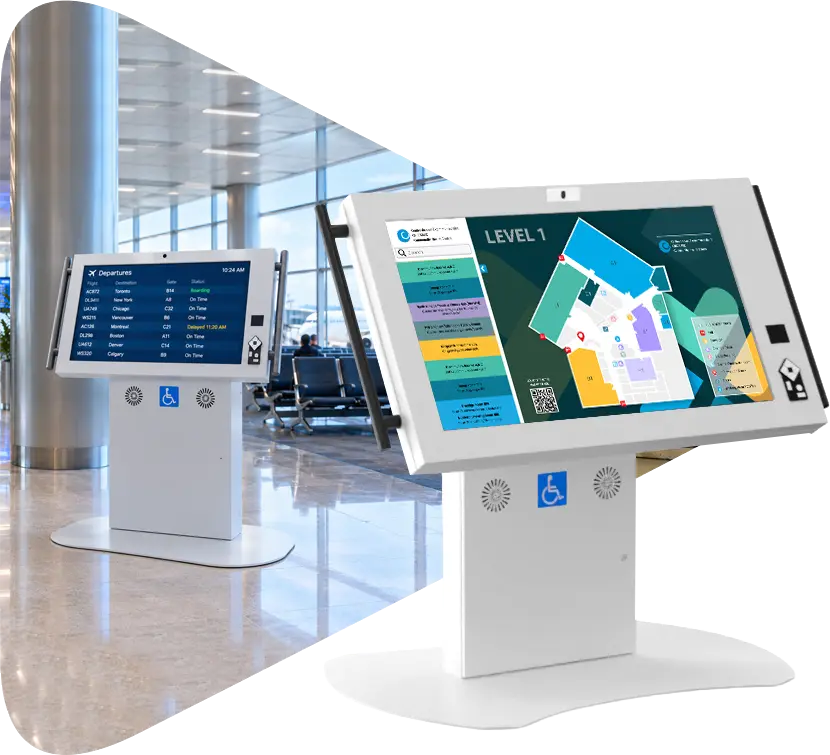

Duraline Angled Accessibility Kiosk
A self-service kiosk designed to CSA/ASC B651.2:25, in 32", 43" and 50" landscape models.
It is designed with visitors who use a wheelchair, have low vision or are hard of hearing in mind: the screen tilts 30° for seated and standing users, a tactile navigation keypad and a headphone jack sit within reach, and an optional hearing loop carries the kiosk’s audio to hearing aids.
Its 14-gauge steel body and antimicrobial finish are made for hospitals, airports, campuses and public service counters.
Designed to CSA/ASC B651.2:25 · Antimicrobial finish · 14-gauge steel
Made for Every Visitor
Access
- Room for a wheelchair
685 mm high, 430 mm deep knee and toe space - Screen tilted 30°
Readable seated or standing - Grab bars on both sides
Contrasting, slip-resistant, 1.3 kN design load - Detectable with a cane
The head’s lowest edge is at 685 mm - Hearing loop and Auracast
With the optional Assistive Listening Package
Interaction
- Infrared touch screen
Responds to a finger, glove, stylus or prosthetic - Anti-reflective glass
Less glare on the display - Tactile navigation keypad
With a lit headphone jack and a volume key - 1D/2D barcode scanner
Placed within reach - 4K camera and speakers
With a built-in amplifier
Construction
- 14-gauge high-impact steel
For busy public spaces - Antimicrobial powder coat
A silver-ion additive in the finish - Cleans with bleach
The finish withstands a 10% solution - Commercial 24/7 display
32", 43" or 50" landscape - Lockable pedestal
Equipment shelf and rear cable entry
Controls Within Reach
CSA/ASC B651.2:25 sets a range of 400 to 1,200 mm above the floor for controls. On every model, the top of the keypad is at 915 mm and the top of the scanner window at 1,007 mm, both inside that range. On the 43" and 50" models the display rises above 1,200 mm, so keep on-screen touch targets below that line.

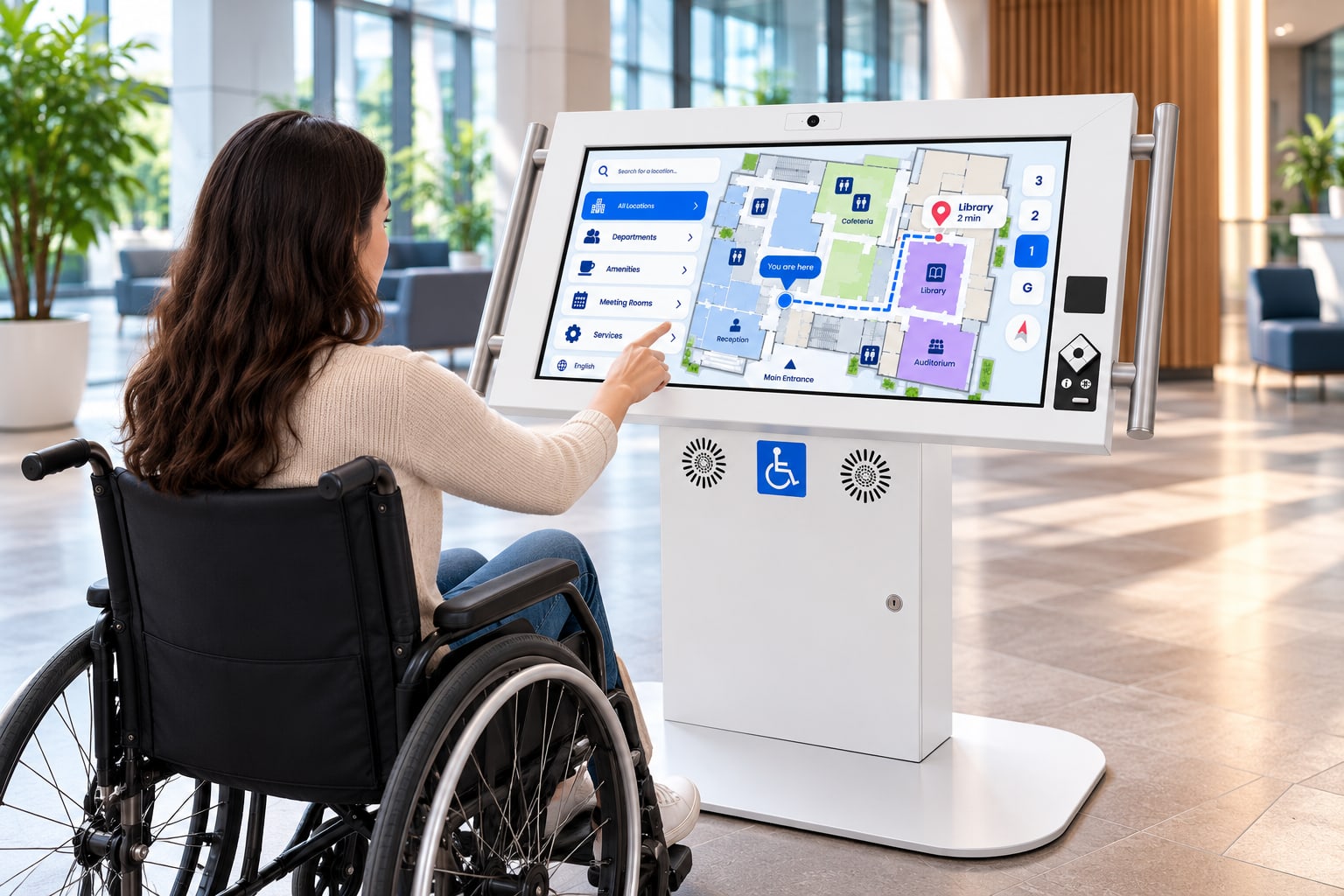

Under the 30° screen there are 685 mm of clearance and 430 mm of depth for knees and toes, and grab bars in a contrasting colour run along both sides.
Simple to Maintain

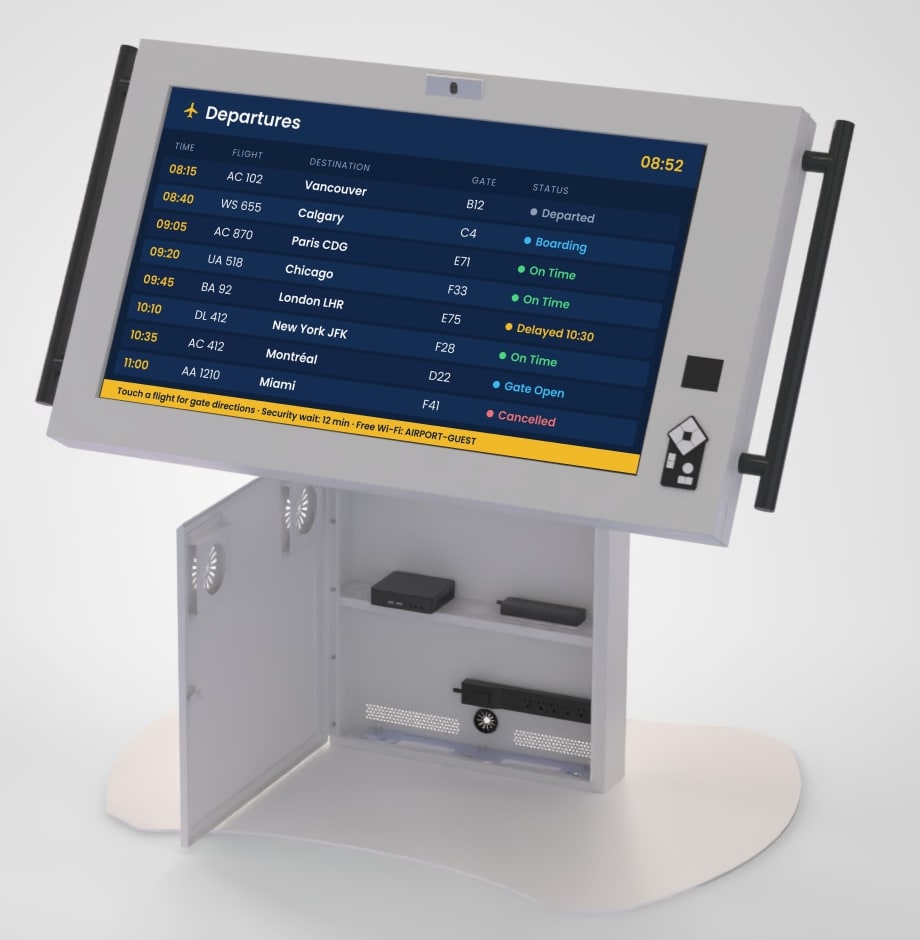

- A lockable door on the pedestal
- A shelf for the media player or your own mini PC
- Cable entry and ventilation at the rear
- Anchored to the floor at two points
Assistive Listening Package (option)
Part number ASSISTIVE-001. It adds an induction hearing loop, picked up by hearing aids with a telecoil, and Auracast broadcast audio for compatible hearing aids, earbuds and phones. Visitors hear the kiosk’s spoken guidance on their own device, with no cables and no headsets to hand out.
Where It Fits

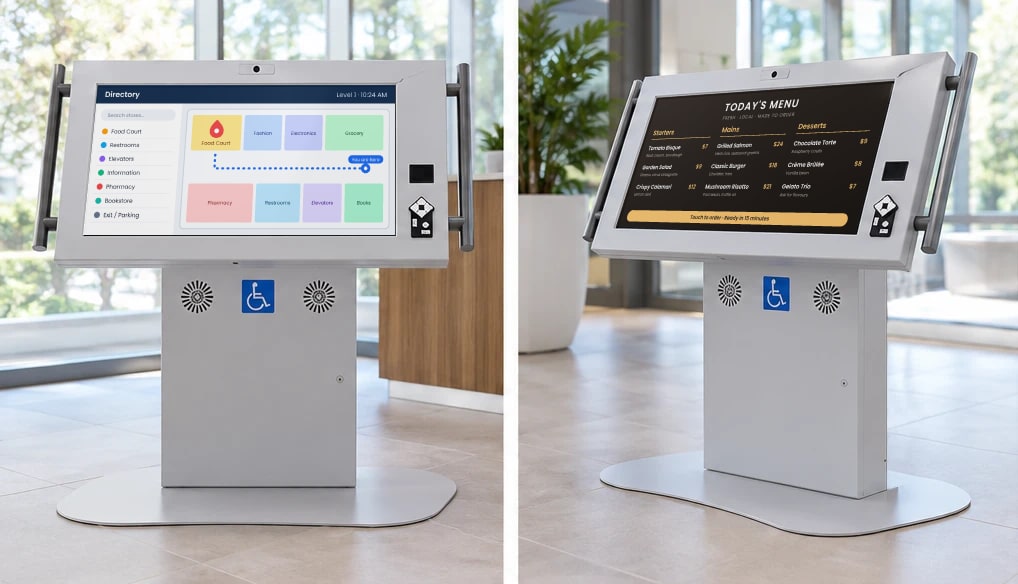

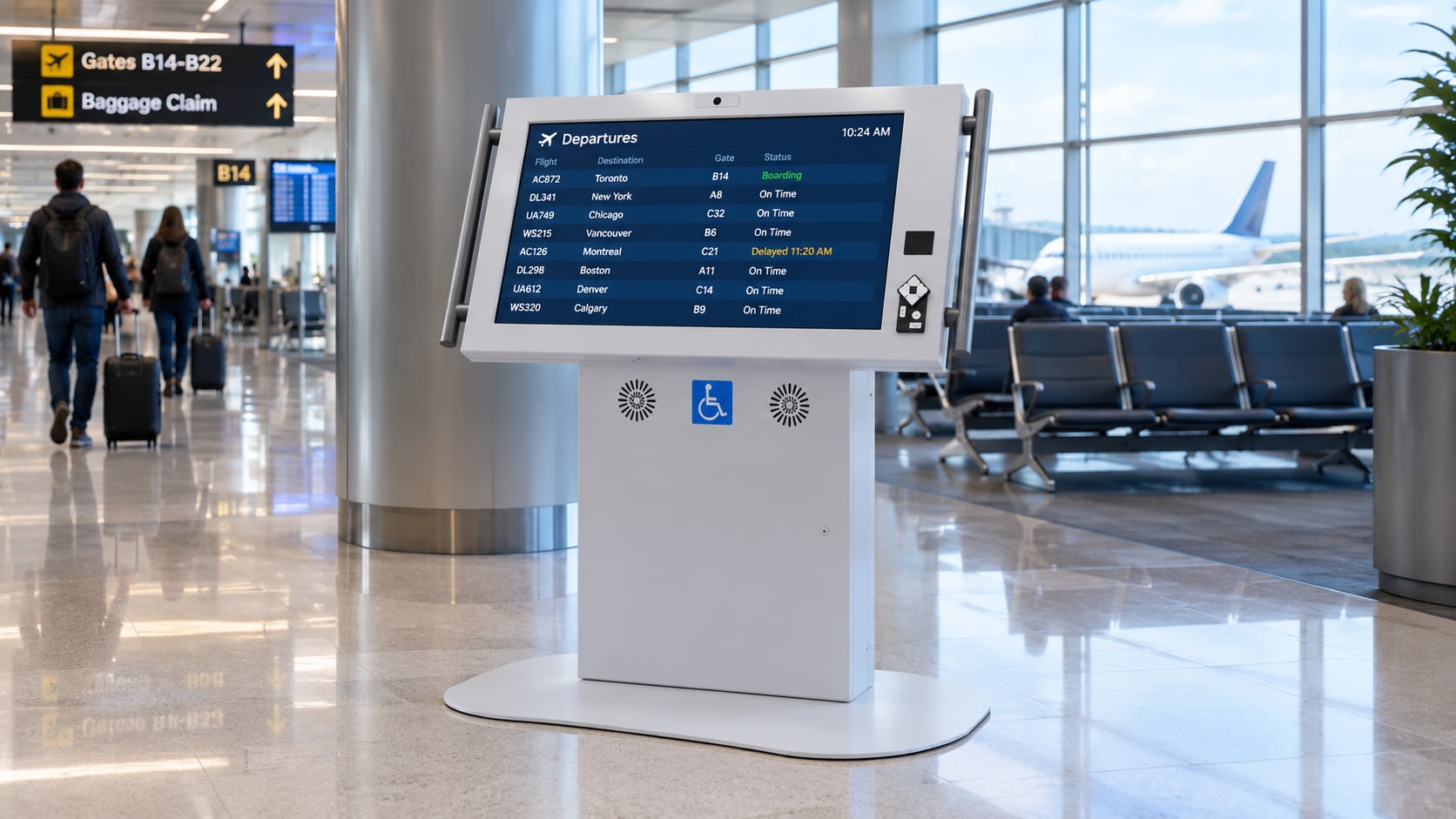

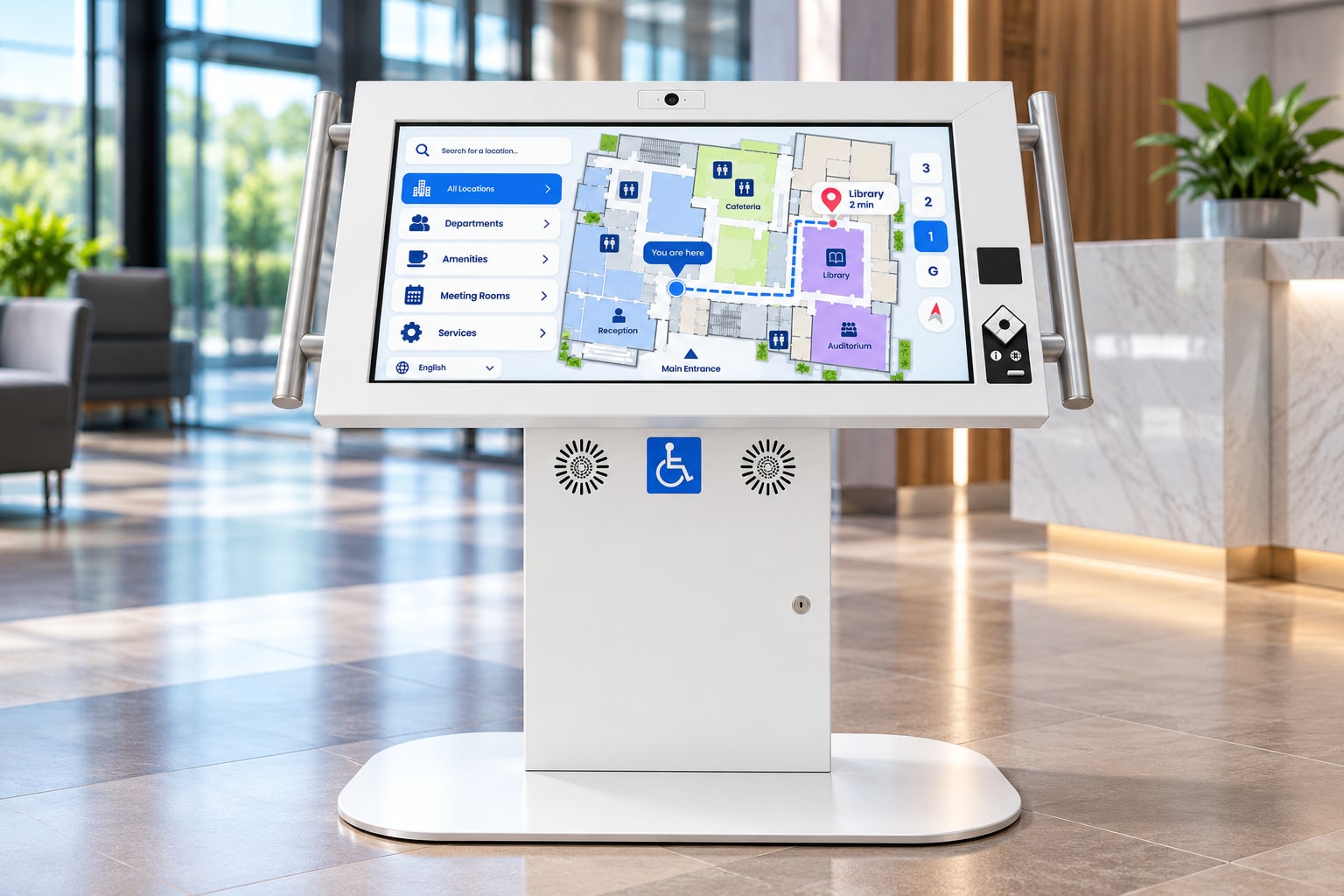

Wayfinding and self-service in hospitals, airports, campuses and government service counters, running firmChannel wayfinding maps, directories and information screens.
Product Specifications
| Specification | 32" | 43" | 50" |
|---|---|---|---|
| Part number | DK-AK32ITAA2 | DK-AK43ITAA2 | DK-AK50ITAA2 |
| Display | 32" landscape | 43" landscape | 50" landscape |
| Display type | Commercial, rated for 24/7 use | ||
| Touch | Infrared, behind anti-reflective glass; responds to a finger, glove, stylus or prosthetic | ||
| Height | 1,226 mm (48.3") | 1,343 mm (52.9") | 1,420 mm (55.9") |
| Width, with grab bars | about 1,106 mm (43.5") | about 1,350 mm (53.2") | about 1,504 mm (59.2") |
| Base (W x D) | 950 x 822 mm (37.4 x 32.4") | 1,192 x 901 mm (46.9 x 35.5") | 1,346 x 988 mm (53.0 x 38.9") |
| Weight | 97.5 kg (215 lb) | 142.9 kg (315 lb) | 155.1 kg (342 lb) |
| Standard | Designed to CSA/ASC B651.2:25 | ||
| Construction | 14-gauge high-impact steel | ||
| Finish | Antimicrobial powder coat with a silver-ion additive, signal white (RAL 9003) or a custom colour; withstands a 10% bleach solution; matte, slip-resistant base | ||
| Custom colours | Available; each is checked against the luminance contrast requirements of CSA/ASC B651 for the grab bars and controls before production | ||
| Grab bars | Both sides; 38 mm (1.5") black steel tube, slip-resistant; 1.3 kN design load | ||
| Accessible controls | Tactile navigation keypad; lit 3.5 mm headphone jack with a volume key | ||
| Peripherals | 1D/2D barcode scanner, 4K camera, speakers with a built-in amplifier | ||
| Media player | Shelf in the lockable pedestal for a media player or your own mini PC | ||
| Installation | Two-point floor anchoring; 6 mm base plate; cable entry and ventilation at the rear | ||
| Option | Assistive Listening Package (ASSISTIVE-001): induction hearing loop and Auracast | ||
Key Dimensions

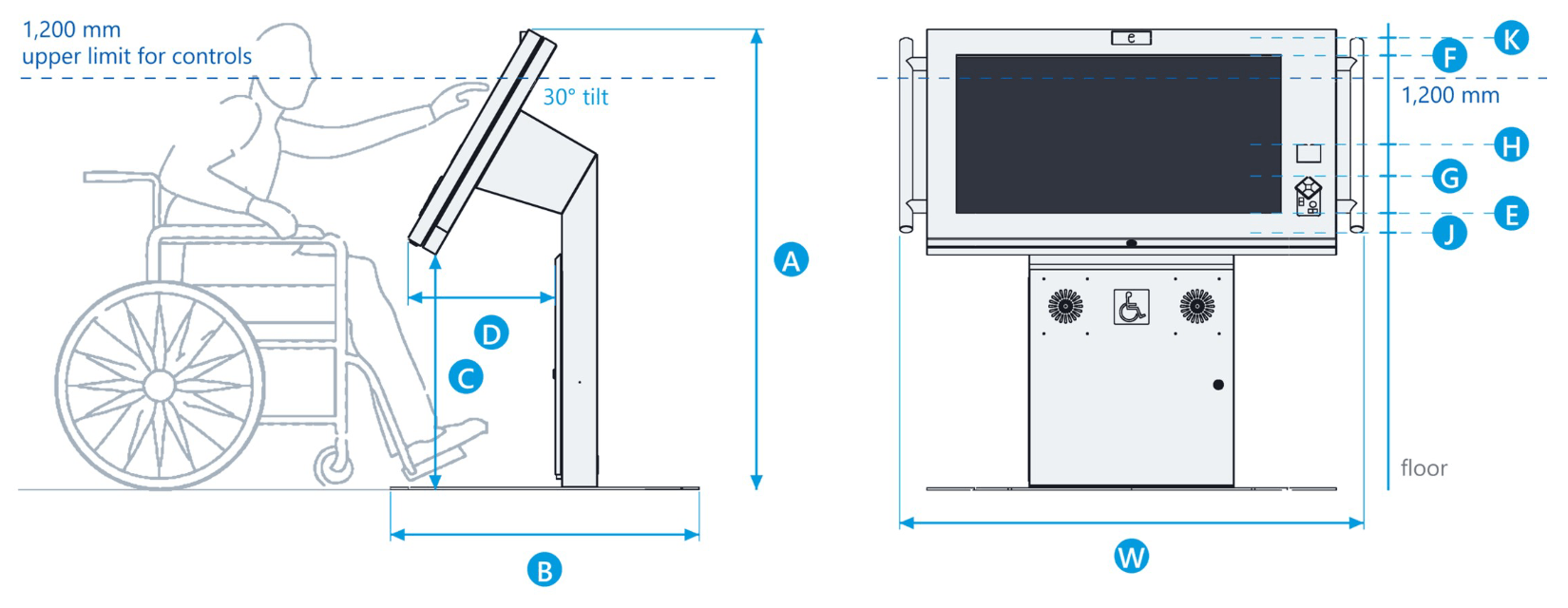

The drawing shows the 43" model; the table gives each size. Installation drawings are available on request.
| Dimension | 32" | 43" | 50" |
|---|---|---|---|
| A Height | 1,226 mm (48.3") | 1,343 mm (52.9") | 1,420 mm (55.9") |
| B Depth (base) | 822 mm (32.4") | 901 mm (35.5") | 988 mm (38.9") |
| W Width, with grab bars | about 1,106 mm (43.5") | about 1,350 mm (53.2") | about 1,504 mm (59.2") |
| Base width | 950 mm (37.4") | 1,192 mm (46.9") | 1,346 mm (53.0") |
| C Knee clearance | 685 mm (27.0") on every model | ||
| D Knee and toe depth | 430 mm (16.9") on every model | ||
| E Display, bottom edge | 807 mm (31.8") on every model | ||
| F Display, top edge | 1,150 mm (45.3") | 1,266 mm (49.8") | 1,344 mm (52.9") |
| G Keypad, top | 915 mm (36.0") on every model | ||
| H Scanner window, top | 1,007 mm (39.6") on every model | ||
| J Grab bars, bottom | 750 mm (29.5") on every model | ||
| K Grab bars, top | 1,288 mm (50.7") | 1,318 mm (51.9") | 1,393 mm (54.8") |
| Screen tilt; base plate | 30°; 6 mm, on every model | ||
Specifications subject to change without notice. The antimicrobial protection applies to the finish only.
FAQ
Questions About the Accessibility Kiosk
Which accessibility standard is the kiosk designed to?
CSA/ASC B651.2:25, the current Canadian standard for accessible self-service kiosks. The kiosk is designed to the standard; it has not been assessed or certified by CSA Group.
Which sizes are available?
32", 43" and 50" landscape models: part numbers DK-AK32ITAA2, DK-AK43ITAA2 and DK-AK50ITAA2.
What does it offer visitors who are hard of hearing?
A lit 3.5 mm headphone jack with a volume key comes standard. The optional Assistive Listening Package (ASSISTIVE-001) adds an induction hearing loop for hearing aids with a telecoil, and Auracast audio for compatible hearing aids, earbuds and phones.
Can it be ordered in a custom colour?
Yes. Signal white (RAL 9003) is standard. Before a custom colour goes into production, it is checked against the luminance contrast requirements of CSA/ASC B651 for the grab bars and controls.
Can I use my own media player?
Yes. The lockable pedestal has an equipment shelf for a media player or your own mini PC.
