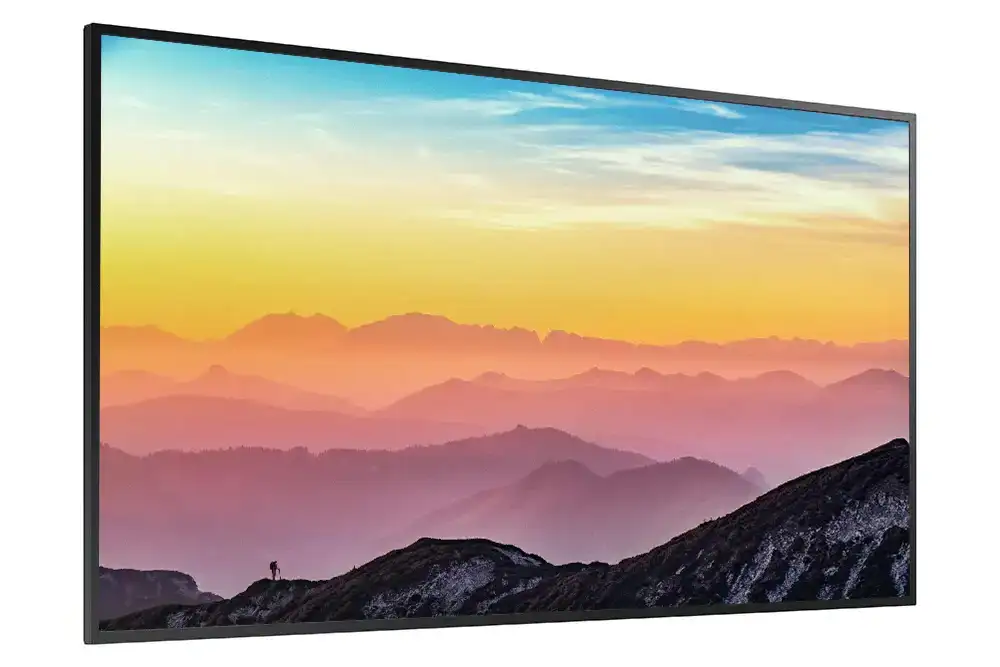

DSB Series Digital Displays 500nit 4k
Available in an extensive range of sizes from 43" to 98", the DSB Series digital displays marries cutting-edge technology with sleek design to enhance any setting.
Powered by the Quantum Processor 4K, this UHD 4K display delivers unmatched picture quality, bringing to life a vibrant spectrum of colors with Dynamic Crystal Color. Its non-glare digital display guarantees that information is presented clearly and accurately, complemented by a slim, symmetrical design for effortless integration into diverse environments.
Technical Specifications:
- LED display for digital signage
- Resolution: (2160p) 3840 x 2160 4K UHD
- Haze: 25%
- Brightness: 500Nit
- Dust-resistant design with IP5X certification
- 24/7 operation
- Tizen-based SOC (System on Chip) media player
- Smart Signage with no external media player required
- Includes Tilt wall mount
- 3-year warranty with return to depot repair services
DSB Series Commercial Digital Display Features
Vibrant Crystal Color
Dive into a heightened level of immersion with a spectrum boasting one billion shades of color. Dynamic Crystal Color delivers lifelike variations, allowing customers to discern every subtle nuance in the picture for an unparalleled viewing experience.
Flexible installation
The Auto Level feature seamlessly adjusts the display's orientation as the screen shifts from vertical to horizontal, providing enhanced versatility to suit any environment effortlessly.
Non-glare
Each display within the DSB Series is furnished with reliable non-glare panels, guaranteeing enhanced visibility from every angle, regardless of the time of day.
DSB Series Digital Display Specs
DSB-43
Panel
- Diagonal Size
- 43"
- Type
- VA
- Resolution
- 3840x2160(16:9)
- Pixel Pitch(mm)
- 0.2451 x 0.2451
- Active Display Area(mm)
- 941.184 (H) x 529.416 (V)
- Brightness(Typ.)
- 500 nit
- Contrast Ratio
- 4000:1 (* IPS - 1200:1)
- Viewing Angle(H/V)
- N/A
- Color Gamut
- 92% (DCI-P3, CIE 1976)
- Operation Hour
- 24/7
- Haze
- Non-Glare
DSB-50
Panel
- Diagonal Size
- 50"
- Type
- VA
- Resolution
- 3840x2160(16:9)
- Pixel Pitch(mm)
- 0.285 x 0.285
- Active Display Area(mm)
- 1095.84(H) x 616.41(V)
- Brightness(Typ.)
- 500 nit
- Contrast Ratio
- 4000:1 (* IPS - 1200:1)
- Viewing Angle(H/V)
- N/A
- Color Gamut
- 92% (DCI-P3, CIE 1976)
- Operation Hour
- 24/7
- Haze
- Non-Glare
DSB-55
Panel
- Diagonal Size
- 55"
- Type
- VA
- Resolution
- 3840x2160(16:9)
- Pixel Pitch(mm)
- 0.315 x 0.315
- Active Display Area(mm)
- 1209.6(H) x 680.4(V)
- Brightness(Typ.)
- 500 nit
- Contrast Ratio
- 4000:1 (* IPS - 1200:1)
- Viewing Angle(H/V)
- N/A
- Color Gamut
- 92% (DCI-P3, CIE 1976)
- Operation Hour
- 24/7
- Haze
- Non-Glare
DSB-65
Panel
- Diagonal Size
- 65"
- Type
- VA
- Resolution
- 3840x2160(16:9)
- Pixel Pitch(mm)
- 0.372 x 0.372
- Active Display Area(mm)
- 1428.48 (H) x 803.52 (V)
- Brightness(Typ.)
- 500 nit
- Contrast Ratio
- 4000:1 (* IPS - 1200:1)
- Viewing Angle(H/V)
- N/A
- Color Gamut
- 92% (DCI-P3, CIE 1976)
- Operation Hour
- 24/7
- Haze
- Non-Glare
DSB-75
Panel
- Diagonal Size
- 75"
- Type
- VA
- Resolution
- 3840x2160(16:9)
- Pixel Pitch(mm)
- 0.42975 x 0.42975
- Active Display Area(mm)
- 1650.24 (H) x 928.26 (V)
- Brightness(Typ.)
- 500 nit
- Contrast Ratio
- 4000:1
- Viewing Angle(H/V)
- N/A
- Color Gamut
- 92% (DCI-P3, CIE 1976)
- Operation Hour
- 24/7
- Haze
- Non-Glare
DSB-85
Panel
- Diagonal Size
- 85"
- Type
- Edge LED BLU
- Resolution
- 3840*2160 (4K UHD)
- Pixel Pitch(mm)
- 0.4875 x 0.4875
- Active Display Area(mm)
- 1872.0(H) x 1053.01(V)
- Brightness(Typ.)
- 500 nit
- Contrast Ratio
- 4000:1
- Viewing Angle(H/V)
- 178/178
- Response Time(G-to-G)
- 8ms(Typ.)
- Display Colors
- 16.7M(True Display) 1.07B(Ditherd 10bit)
- Color Gamut
- 92% (DCI-P3, CIE 1976)
- Operation Hour
- 24/7
- Haze
- 28%
DSB-98
Panel
- Diagonal Size
- 98"
- Type
- Direct LED BLU
- Resolution
- 3840*2160 (4K UHD)
- Pixel Pitch(mm)
- 0.562 x 0.562 (mm)
- Active Display Area(mm)
- 2158.848(H) x 1214.352(V)
- Brightness(Typ.)
- 500 nit
- Contrast Ratio
- 1200:1
- Viewing Angle(H/V)
- 178/178
- Response Time(G-to-G)
- 8ms(Typ.)
- Display Colors
- 16.7M(True Display)1.07B(Ditherd 10bit)
- Color Gamut
- 72%
- Operation Hour
- 24/7
- Haze
- 25%
