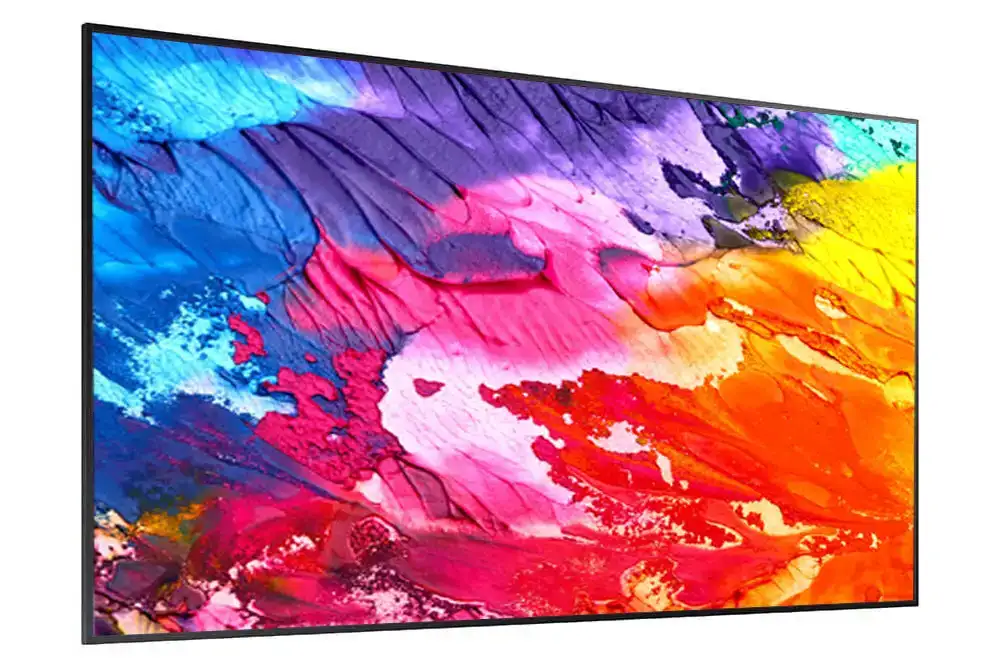

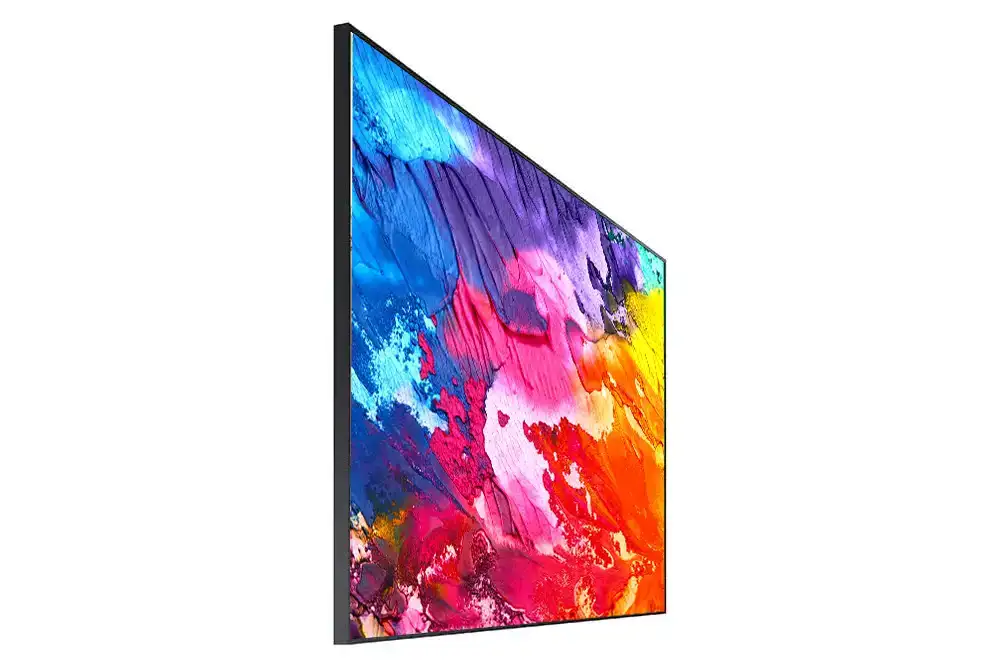

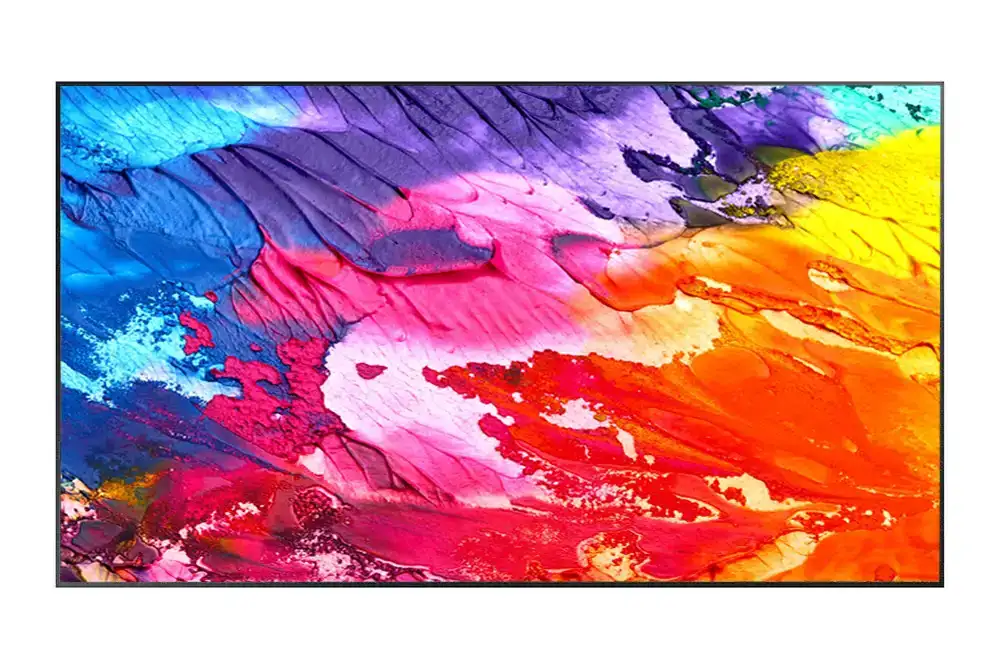

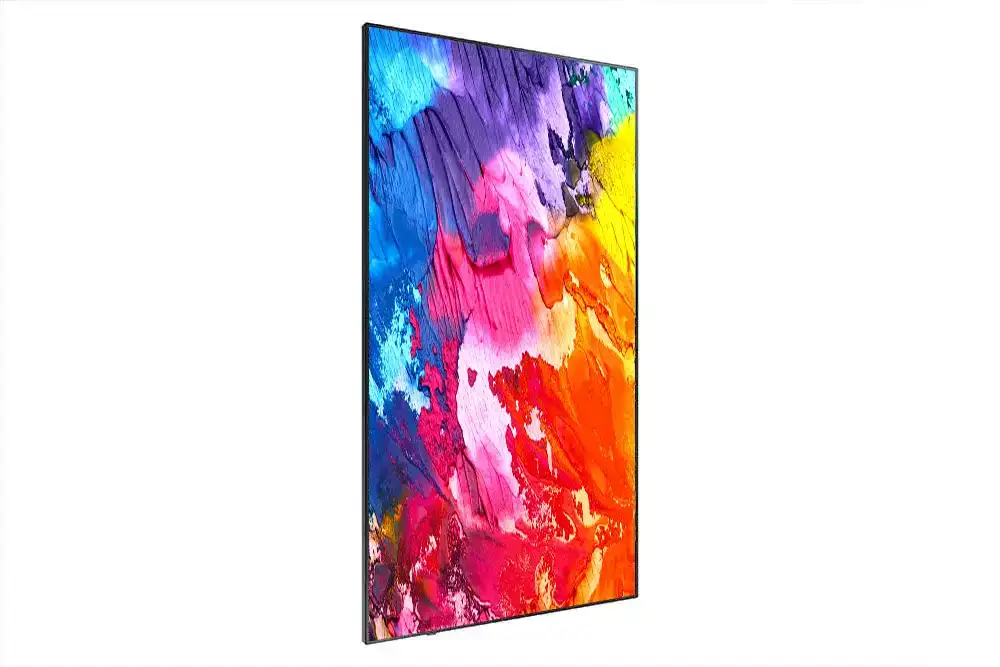

DSB-EB Series Digital Display

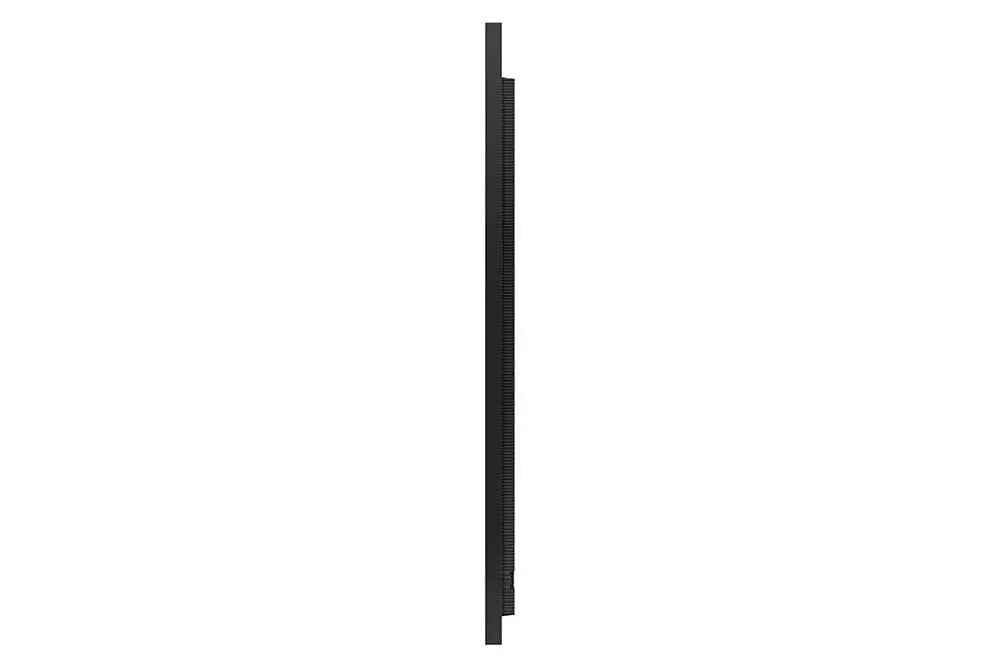

Available in sizes ranging from 43" to 98", the DSB-EB Series 350nit 4k Digital Display offers ultra-high-definition content with dynamic, vibrant colors on a slim, efficient digital signboard.
Designed to captivate and immerse viewers, this digital display series delivers lifelike images through its UHD resolution, ensuring even content with lower resolution is elevated to UHD quality with advanced upscaling technology and picture-enhancement features. The addition of Dynamic Crystal Color expands the visual experience, presenting a wide spectrum of colors, up to one billion shades, for unparalleled clarity and immersion.
Technical Specifications:
- Resolution: 3840 x 2160 (4K UHD)
- Haze: 2%
- Brightness: 350Nit
- Dust-resistant design: IP5X certified
- Operation: 16/7
- Media Player: Tizen-based SOC (System on Chip)
- Smart Signage: No external media player required
- Additional Features: Includes Tilt wall mount, 3-year warranty.
DSB-EB Series Digital Display Features

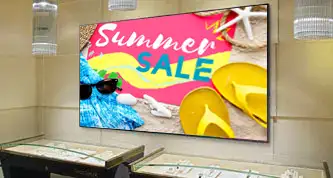

UHD Picture Quality
Stunning UHD image quality, extensive connectivity options, and seamless 24/7 operation.
Intelligent Picture Quality
Advanced Picture Quality technology enhances content from all sources to UHD-level clarity, optimizing on-screen text and imagery with sharp edges and intricate detail.
TIZEN Operating System
The TIZEN operating system boosts display performance, streamlines content management, and guarantees seamless transitions and playback for an enhanced user experience.
DSB-EB Digital Display Specs
DSB-EB43
Panel
- Diagonal Size
- 43"
- Type
- Edge LED BLU
- Resolution
- 3840*2160 (4K UHD)
- Pixel Pitch(mm)
- 0.2451 x 0.2451
- Active Display Area(mm)
- 941.184 (H) x 529.416 (V)
- Brightness(Typ.)
- 350 nit
- Contrast Ratio
- 4000:1
- Viewing Angle(H/V)
- 178/178
- Response Time(G-to-G)
- 8ms(Typ.)
- Display Colors
- 16.7M(True Display) 1.07B(Ditherd 10bit)
- Color Gamut
- 92% (DCI-P3, CIE 1976)
- Operation Hour
- 16/7
- Haze
- 2%
DSB-EB50
Panel
- Diagonal Size
- 50"
- Type
- Edge LED BLU
- Resolution
- 3840*2160 (4K UHD)
- Pixel Pitch(mm)
- 0.285 x 0.285
- Active Display Area(mm)
- 1095.84(H) x 616.41(V)
- Brightness(Typ.)
- 350 nit
- Contrast Ratio
- 4000:1
- Viewing Angle(H/V)
- 178/178
- Response Time(G-to-G)
- 8ms(Typ.)
- Display Colors
- 16.7M(True Display) 1.07B(Ditherd 10bit)
- Color Gamut
- 92% (DCI-P3, CIE 1976)
- Operation Hour
- 16/7
- Haze
- 2%
DSB-EB55
Panel
- Diagonal Size
- 55"
- Type
- Edge LED BLU
- Resolution
- 3840*2160 (4K UHD)
- Pixel Pitch(mm)
- 0.105 x 0.315
- Active Display Area(mm)
- 1209.6(H) x 680.4(V)
- Brightness(Typ.)
- 350 nit
- Contrast Ratio
- 4000:1
- Viewing Angle(H/V)
- 178/178
- Response Time(G-to-G)
- 8ms(Typ.)
- Display Colors
- 16.7M(True Display) 1.07B(Ditherd 10bit)
- Color Gamut
- 92% (DCI-P3, CIE 1976)
- Operation Hour
- 16/7
- Haze
- 2%
DSB-EB65
Panel
- Diagonal Size
- 65"
- Type
- Edge LED BLU
- Resolution
- 3840*2160 (4K UHD)
- Pixel Pitch(mm)
- 0.372 x 0.372
- Active Display Area(mm)
- 1428.48 (H) x 803.52 (V)
- Brightness(Typ.)
- 350 nit
- Contrast Ratio
- 4000:1
- Viewing Angle(H/V)
- 178/178
- Response Time(G-to-G)
- 8ms(Typ.)
- Display Colors
- 16.7M(True Display) 1.07B(Ditherd 10bit)
- Color Gamut
- 92% (DCI-P3, CIE 1976)
- Operation Hour
- 16/7
- Haze
- 2%
DSB-EB75
Panel
- Diagonal Size
- 75"
- Type
- Edge LED BLU
- Resolution
- 3840*2160 (4K UHD)
- Pixel Pitch(mm)
- 0.42975 x 0.42975
- Active Display Area(mm)
- 1650.24 (H) x 928.26 (V)
- Brightness(Typ.)
- 350 nit
- Contrast Ratio
- 4000:1
- Viewing Angle(H/V)
- 178/178
- Response Time(G-to-G)
- 8ms(Typ.)
- Display Colors
- 16.7M(True Display) 1.07B(Ditherd 10bit)
- Color Gamut
- 92% (DCI-P3, CIE 1976)
- Operation Hour
- 16/7
- Haze
- 2%
DSB-EB85
Panel
- Diagonal Size
- 85"
- Type
- Edge LED BLU
- Resolution
- 3840*2160 (4K UHD)
- Pixel Pitch(mm)
- 0.4875 x 0.4875
- Active Display Area(mm)
- 1872.0(H) x 1053.01(V)
- Brightness(Typ.)
- 350 nit
- Contrast Ratio
- 4000:1
- Viewing Angle(H/V)
- 178/178
- Response Time(G-to-G)
- 8ms(Typ.)
- Display Colors
- 16.7M(True Display) 1.07B(Ditherd 10bit)
- Color Gamut
- 92% (DCI-P3, CIE 1976)
- Operation Hour
- 16/7
- Haze
- 2%
DSB-EB98
Panel
- Diagonal Size
- 98"
- Type
- Edge LED BLU
- Resolution
- 3840*2160 (4K UHD)
- Pixel Pitch(mm)
- 0.562 x 0.562 (mm)
- Active Display Area(mm)
- 2158.848(H) x 1214.352(V)
- Brightness(Typ.)
- 350 nit
- Contrast Ratio
- 4000:1
- Viewing Angle(H/V)
- 178/178
- Response Time(G-to-G)
- 6ms(Typ.)
- Display Colors
- 16.7M(True Display)1.07B(Ditherd 10bit)
- Color Gamut
- 72%
- Operation Hour
- 24/7
- Haze
- 25%
