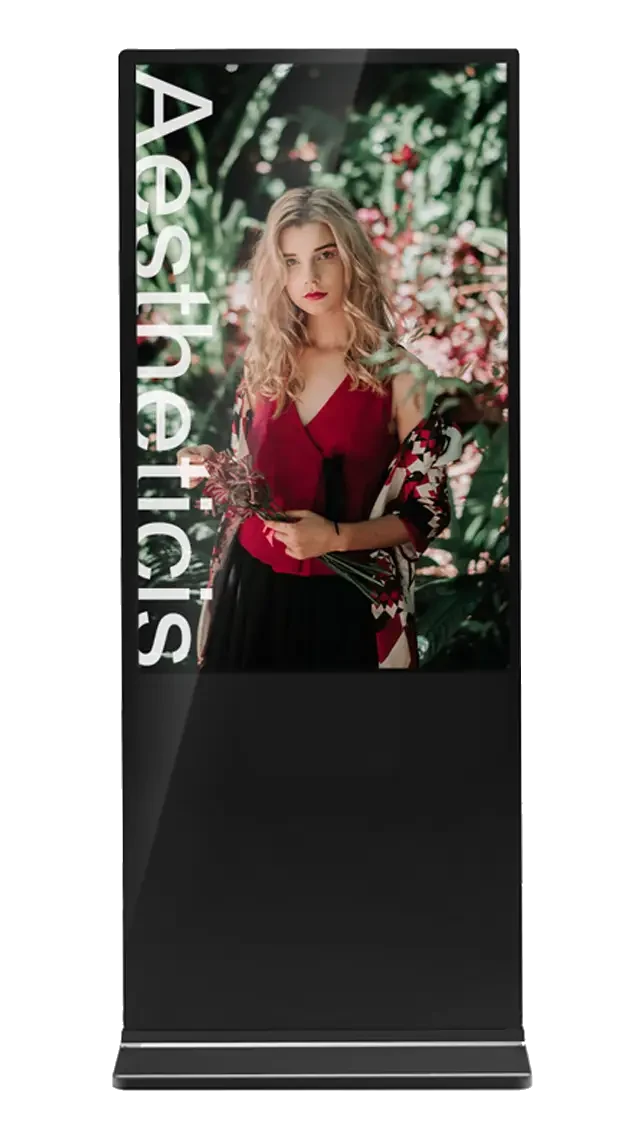

Linea Kiosk
A floor-standing 4K kiosk in seven sizes, from 32" to 85", with or without touch.
Linea gives you one kiosk standard for every space: choose the size for the room and the viewing distance, and keep the same clean design across every location. Every model shows up to 3840 x 2160 on a commercial LED panel.
Order it with touch for directories, check-in and self-service, or without touch for information and promotions, and manage them all from firmChannel.
Part of the Linea Kiosks
One Kiosk Standard, Seven Sizes
Clear and detailed
16.7 million colours, 178° viewing angles and an 8 ms response for smooth video.
Sizes to fit
32", 43", 49", 55", 65", 75" or 85", for each room and viewing distance.
Optional touch
PCAP touch on 32" to 65" and IR touch on 75" and 85", with the same display specifications as the non-touch models.
Where Linea Works
- Interactive maps, staff directories and tenant lists in hospitals, campuses and offices
- Visitor registration, appointment check-in and queue management on touch models
- Corporate news, dashboards and visitor guidance in lobbies and shared spaces
- Schedules, announcements and alerts in busy areas
- Guidance and services in government buildings, libraries, museums and transit

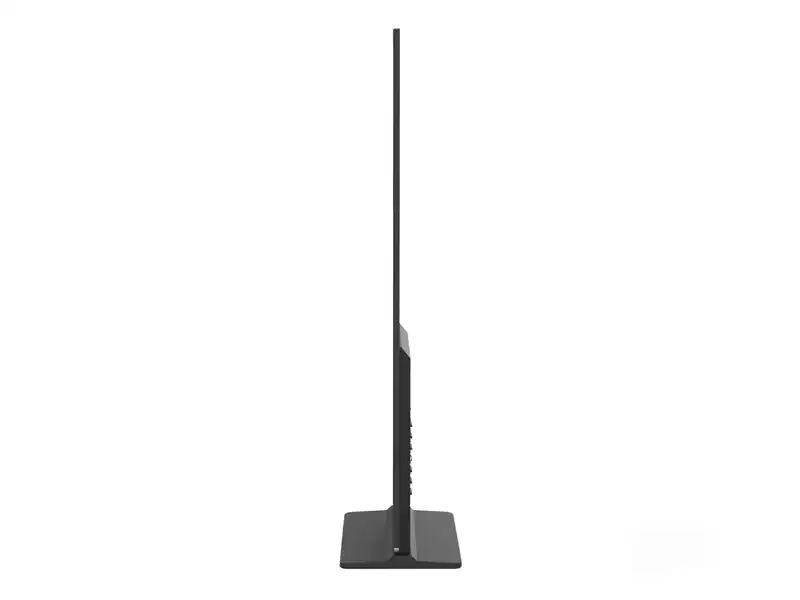

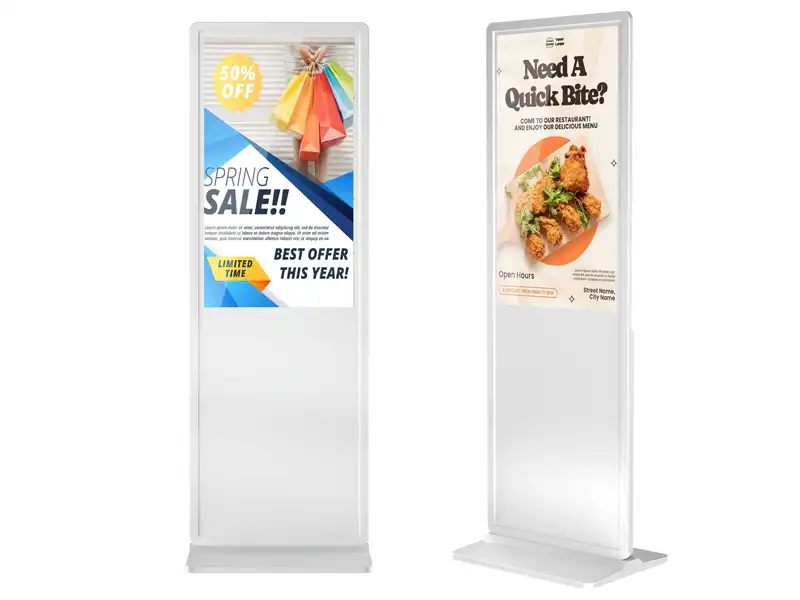

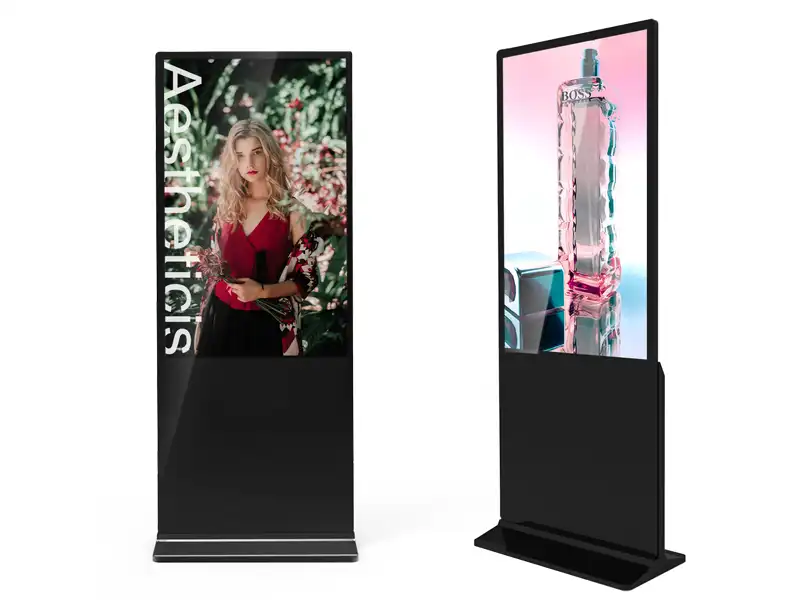

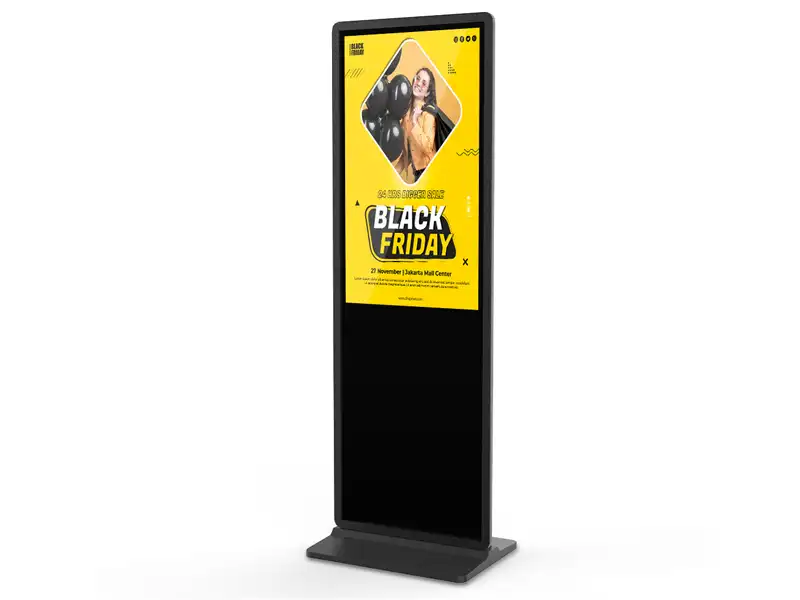

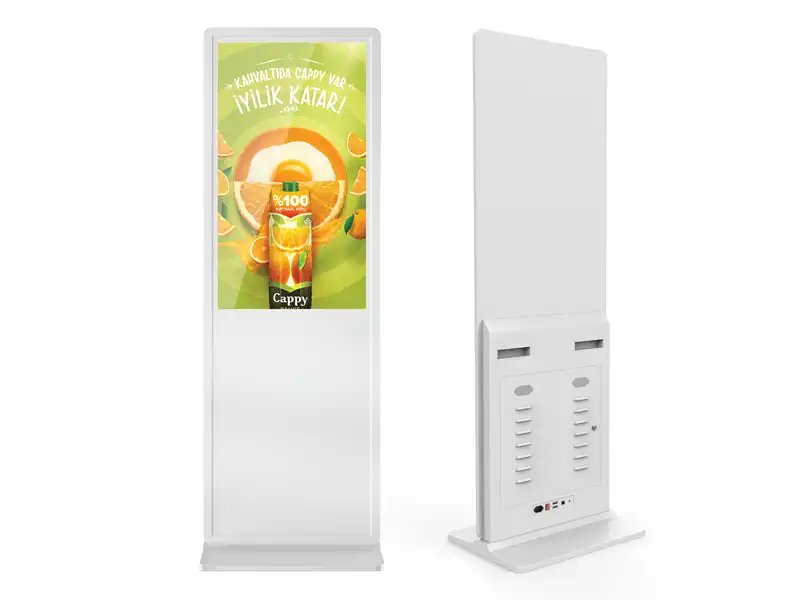

Linea in Place





Product Specifications
| Specification | 32" | 43" | 49" | 55" | 65" | 75" | 85" |
|---|---|---|---|---|---|---|---|
| Model (touch) | LK-32 (LK-32-T) | LK-43 (LK-43-T) | LK-49 (LK-49-T) | LK-55 (LK-55-T) | LK-65 (LK-65-T) | LK-75 (LK-75-T) | LK-85 (LK-85-T) |
| Panel | LED backlight; portrait; 16:9 | ||||||
| Resolution | 3840 x 2160 (4K) | ||||||
| Display area (W x H) | 700 x 392 mm | 928 x 522 mm | 1073.8 x 604 mm | 1209 x 680 mm | 1428.5 x 803.5 mm | 1649.66 x 927.94 mm | 1872 x 1053 mm |
| Pixel pitch | 0.1815 mm | 0.2451 mm | 0.27963 mm | 0.315 mm | 0.372 mm | 0.4296 mm | 0.4875 mm |
| Colours | 16.7 million | ||||||
| Brightness | 350 nits | ||||||
| Contrast ratio | 1000:1 | 1000:1 | 1100:1 | 1400:1 | 1400:1 | 1200:1 | Not listed |
| Viewing angle | 178° / 178° | ||||||
| Response time | 8 ms | ||||||
| Panel life | 50,000 hours | ||||||
| Touch | None, or touch (-T models, other specifications the same): PCAP on 32" to 65", IR 10-point on 75" and 85" | ||||||
| Media player | Customer supplied; mounts in the locked rear cabinet | ||||||
| Casters | Lockable casters optional | ||||||
| Speakers | 2 x 5 W | ||||||
| Temperature | Operating 0 to 50 °C; storage -20 to 60 °C | ||||||
| Power | 100 to 240 V AC, 50/60 Hz; 180 W max, under 5 W standby | ||||||
| Construction | Mild steel casing, aluminium alloy side frame, tempered glass front | ||||||
| Certifications | CE, FCC, RoHS | ||||||
FAQ
Frequently Asked Questions
Which sizes are available?
32", 43", 49", 55", 65", 75" and 85".
Is touch available?
Yes. Every size comes as a touch model or a display-only model. Touch is PCAP on 32" to 65" and IR on 75" and 85".
How bright is the display?
350 nits on every size.
